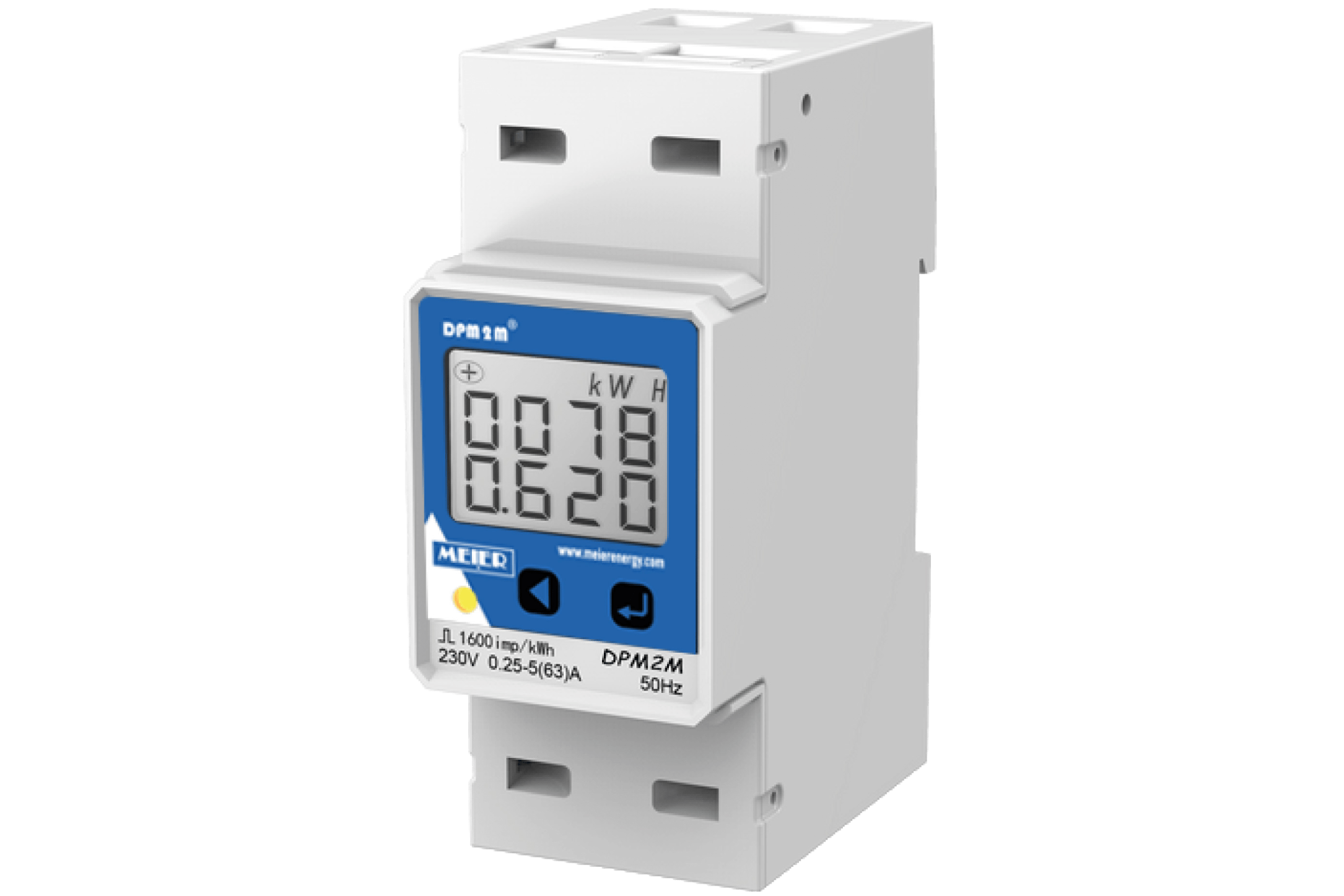

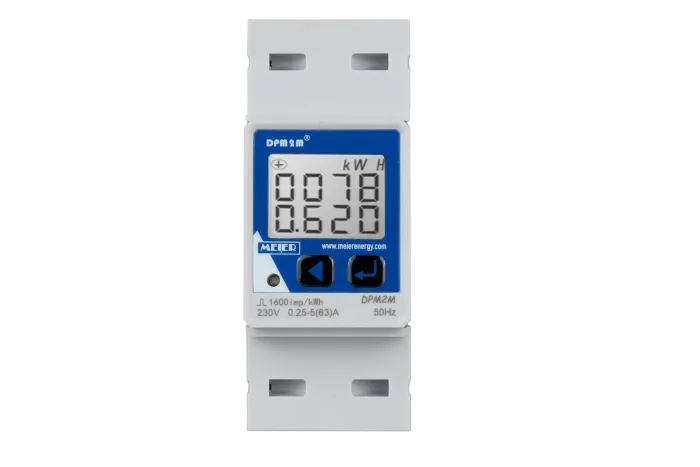

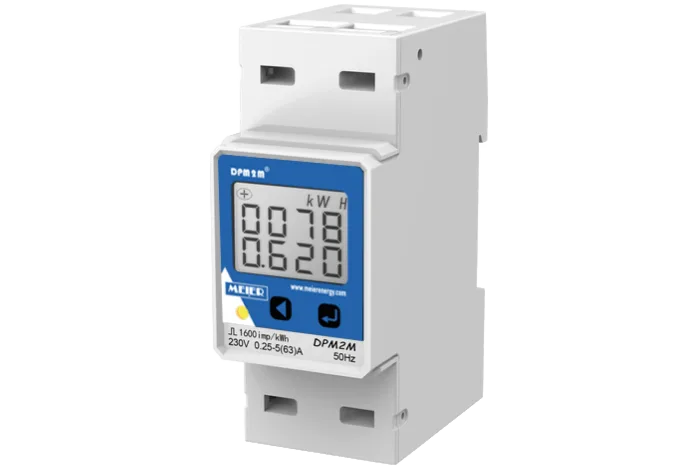

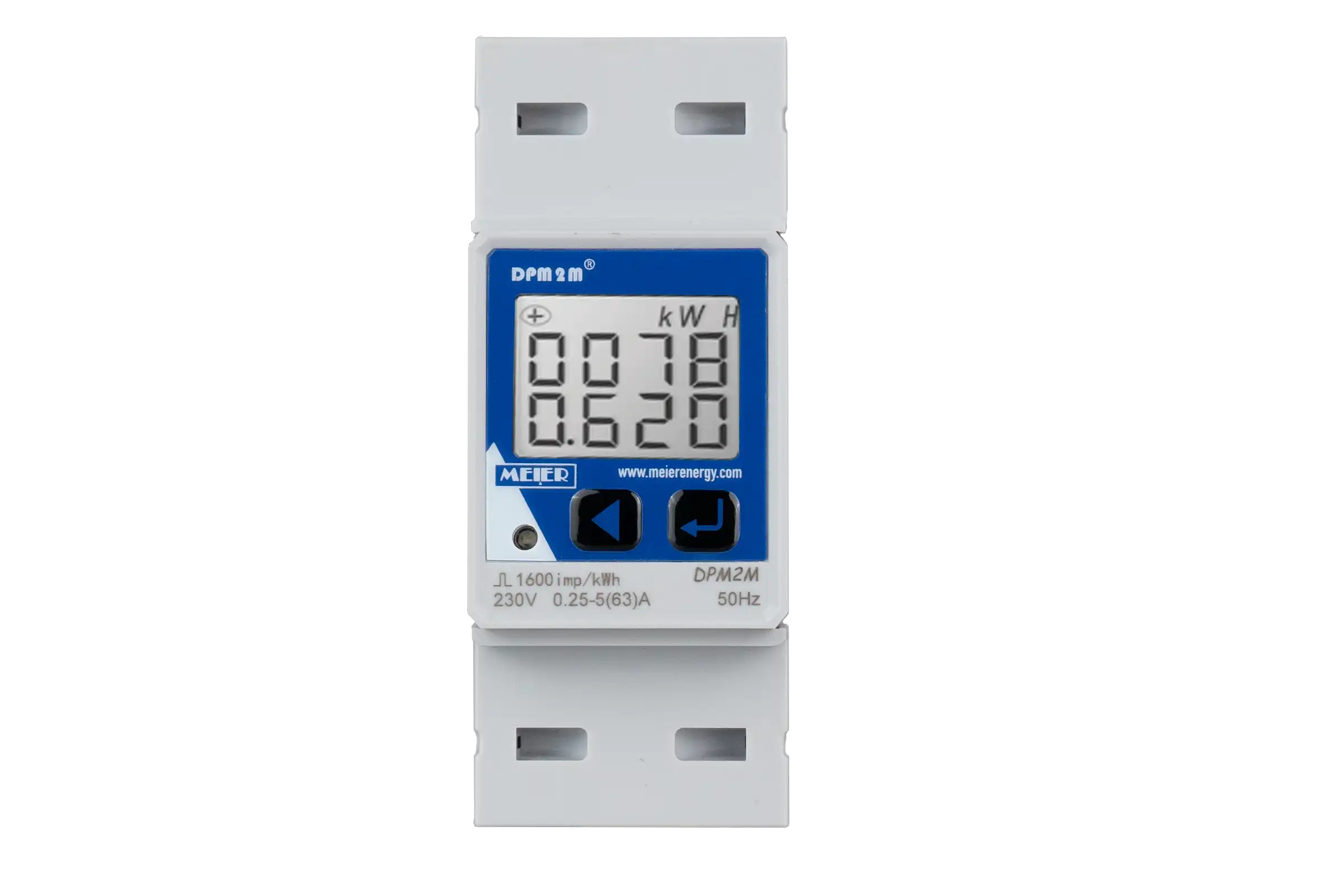

DPM-2M – Electrical Measurement Unit
The DPM-2M electrical measuring unit, designed for DIN rail mounting, is intended for measuring the main electrical parameters in single-phase 2-wire (L+N) systems. It enables direct current measurement up to 63A and is designed and manufactured to accommodate all electricity consumption scenarios.
Standards:
Certifications
The DPM-2M electrical measuring unit, designed for DIN rail mounting, is intended for measuring the main electrical parameters in single-phase 2-wire (L+N) systems. It enables direct current measurement up to 63A and is designed and manufactured to accommodate all electricity consumption scenarios, adopting an advanced method of energy measurement (IC) and utilizing advanced digital sampling and SMT technology.
It allows measurement of the following electrical parameters: current, phase-neutral voltage, active, reactive, and apparent power, power factor, as well as network frequency.
It also measures active and reactive energies according to 4 tariffs and can be used for metering operations for electricity billing purposes as it is MID certified.
It is designed with a modular structure, has a compact size, and offers convenient installation and reliable operation.
The DPM-2M electrical measurement unit features an energy pulse output and an RS485 Modbus communication port.
Measurement
Applications
Technical characteristics
Nominal voltage
Frequency
Voltage range
Startup current
Current measurement inputs
Energy pulse
Digital input
RTC error
Communication (Modbus-RTU)
Width

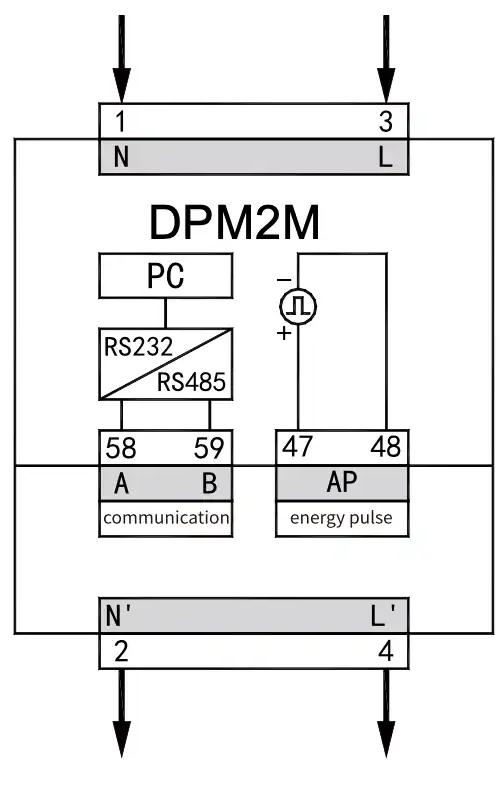

Installation and Connection

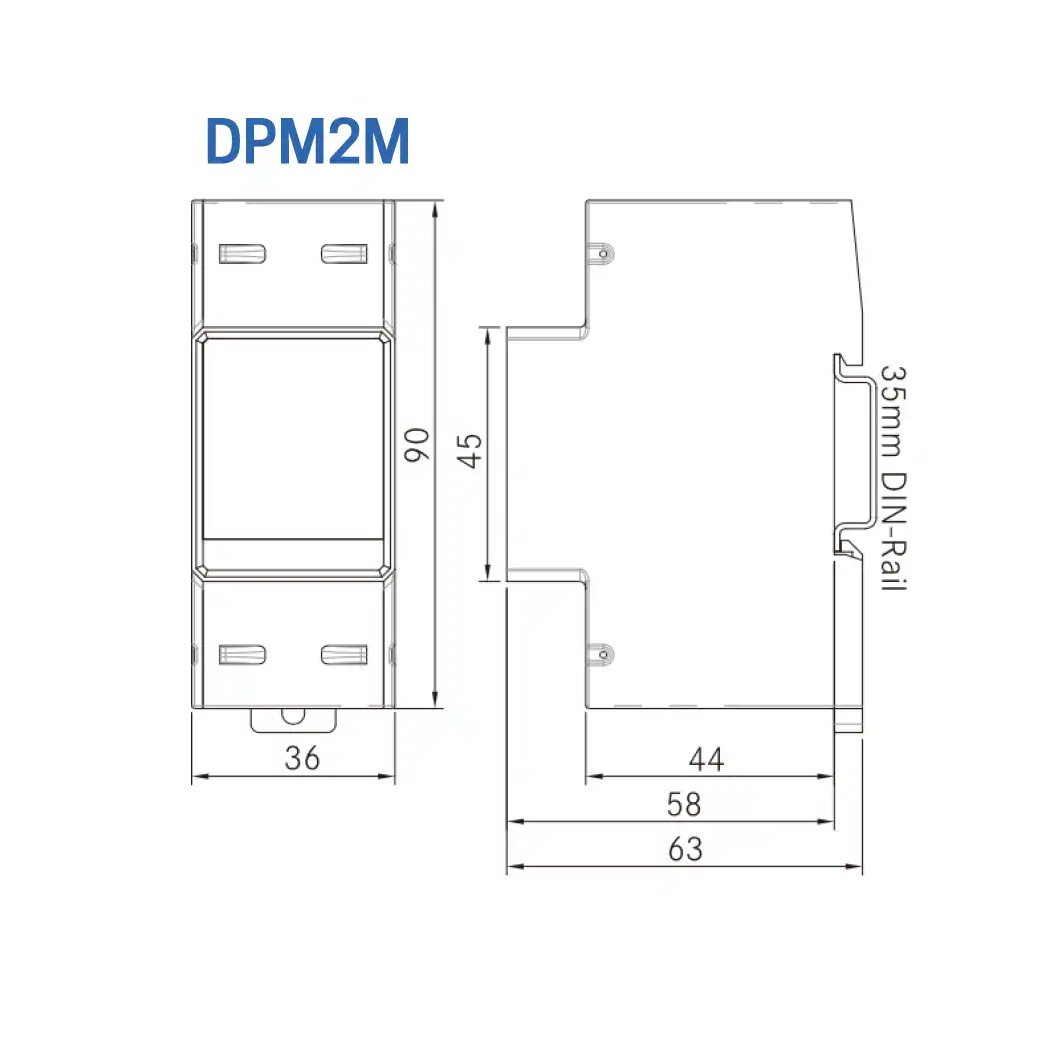

Dimensions
