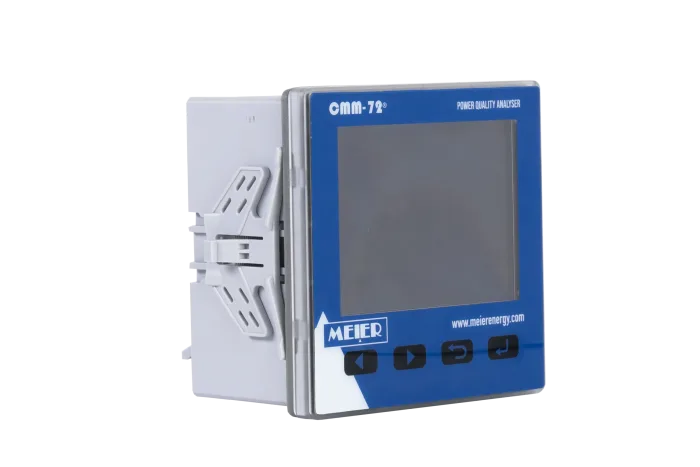

CMM-72 - Network Quality Analyzer

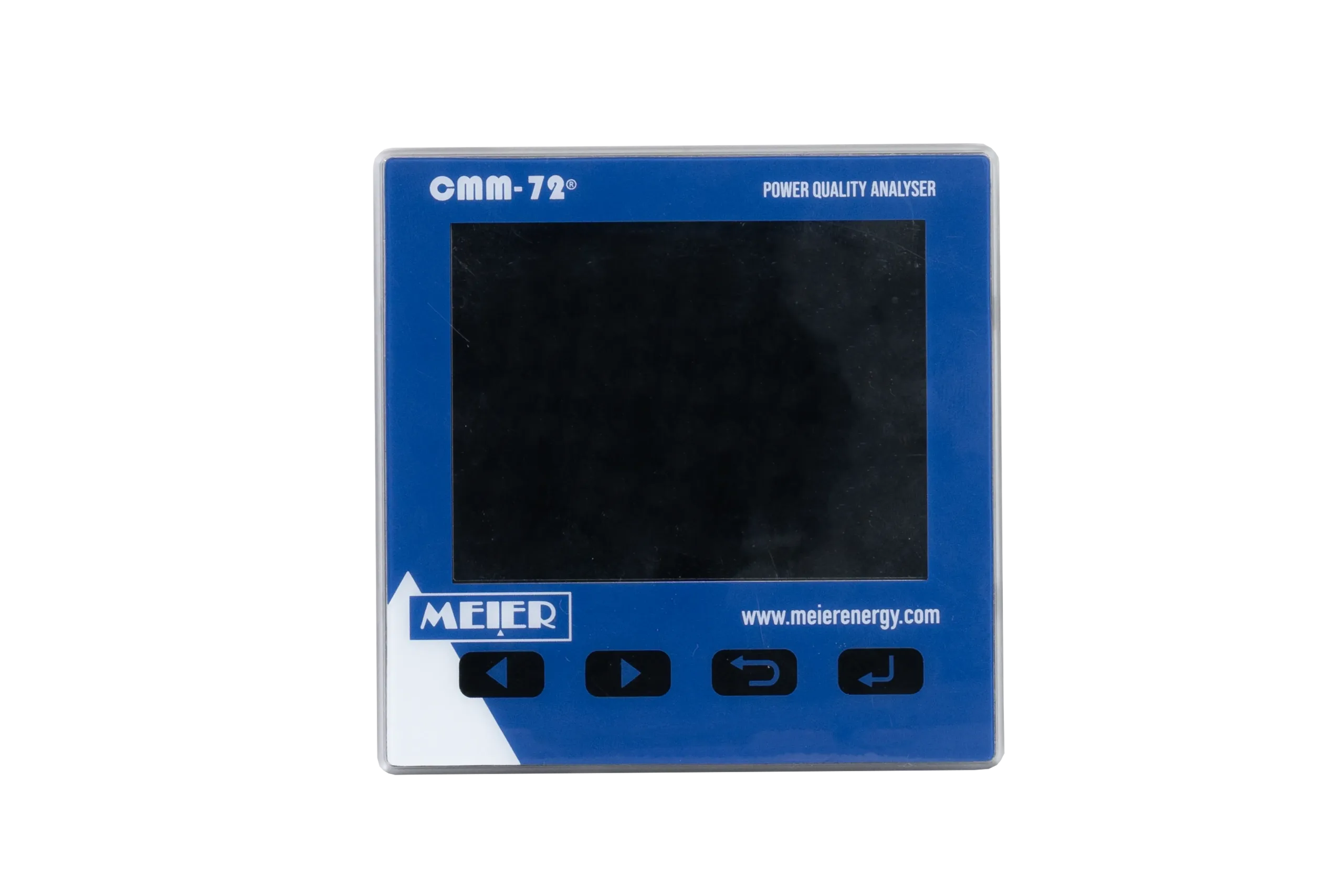

CMM-72 - Network Quality Analyzer - Image 2

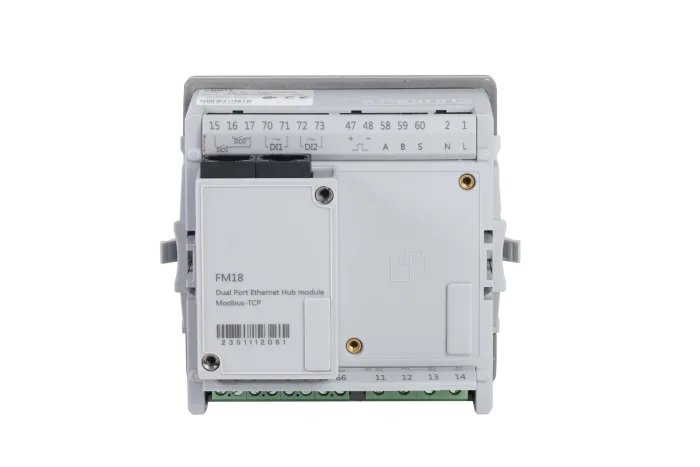

CMM-72 - Network Quality Analyzer - Image 3

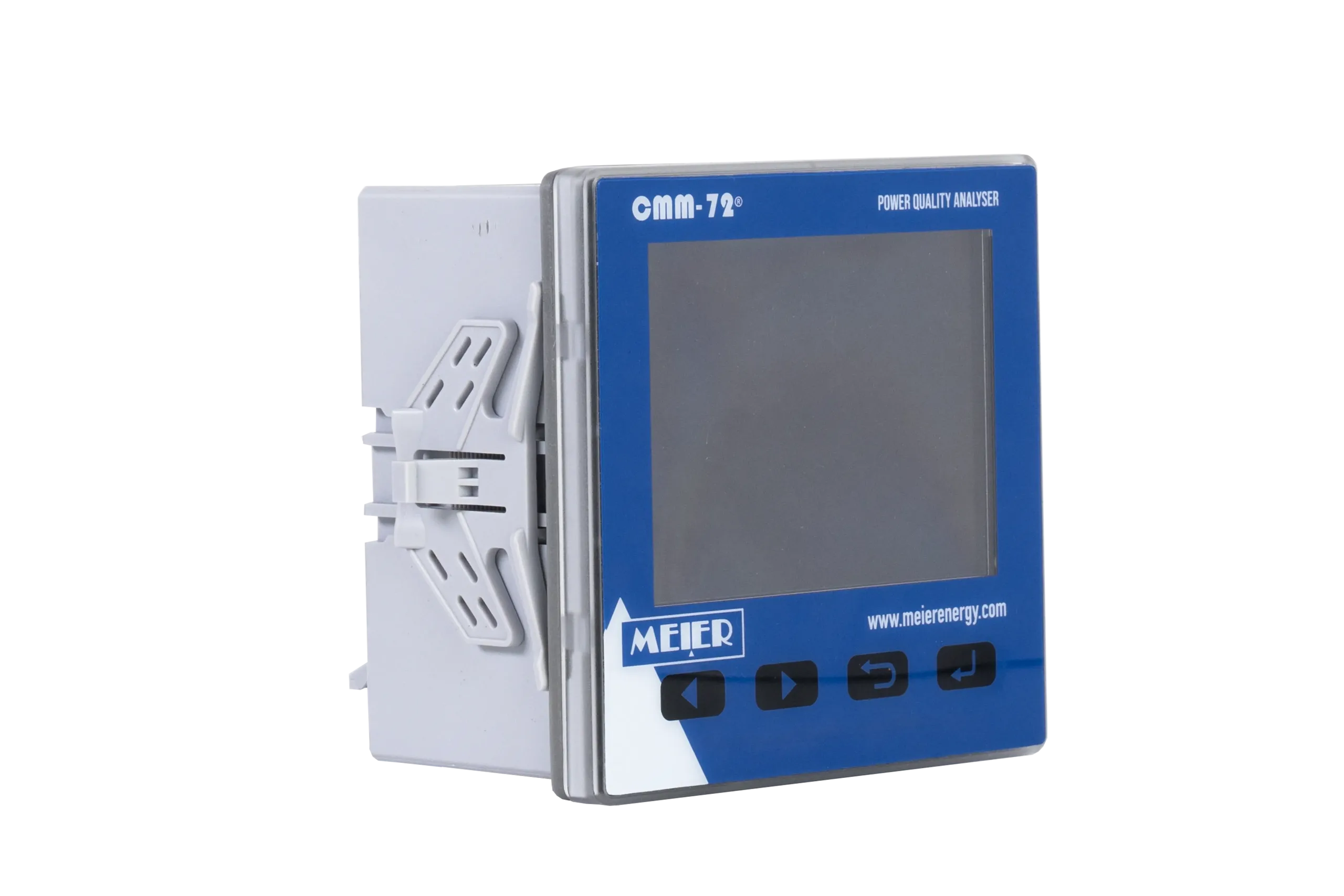

CMM-72
Network Quality Analyzer

The CMM72 energy quality analyzer measures all the electrical parameters of the Low and Medium voltage installation.

  • Memory: 8Mb
  • Accuracy: 0.2s
  • Neutral current input: In
  • 4 Tariffs
  • Capacitive buttons
  • Harmonics
  • RS-485 Modbus Port
  • 1 Impulse Output
  • 2 Relay Outputs
  • 2 TOR inputs
  • Optional modules
  • Dimensions 96x96 mm
  • IP64 (front panel)
Standards:
  • IEC 62052-11
  • IEC 61557-12
  • IEC 62053-21/22/23
  • IEC 50470-1/3
  • IEC 61010-1/2/31
Certifications

Description

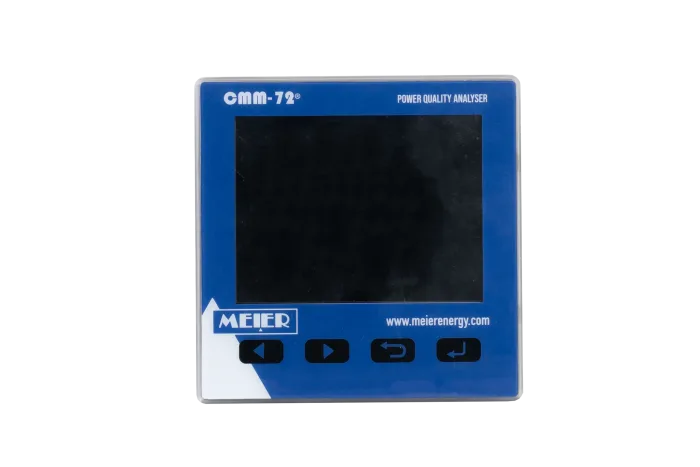

The CMM72 energy quality analyzer measures all the electrical parameters of the Low and Medium voltage installation. It represents the state of the art in electrical measurement. Its advanced power quality analysis and metering features can be used for all types of energy management and electrical installation monitoring applications. The device features a large high-resolution color LCD screen.

Thanks to its capacitive touch keys, it offers an IP64 front panel protection rating of the cabinet, allowing it to be installed in the most severe operating conditions (mining industries, food industries, etc.).

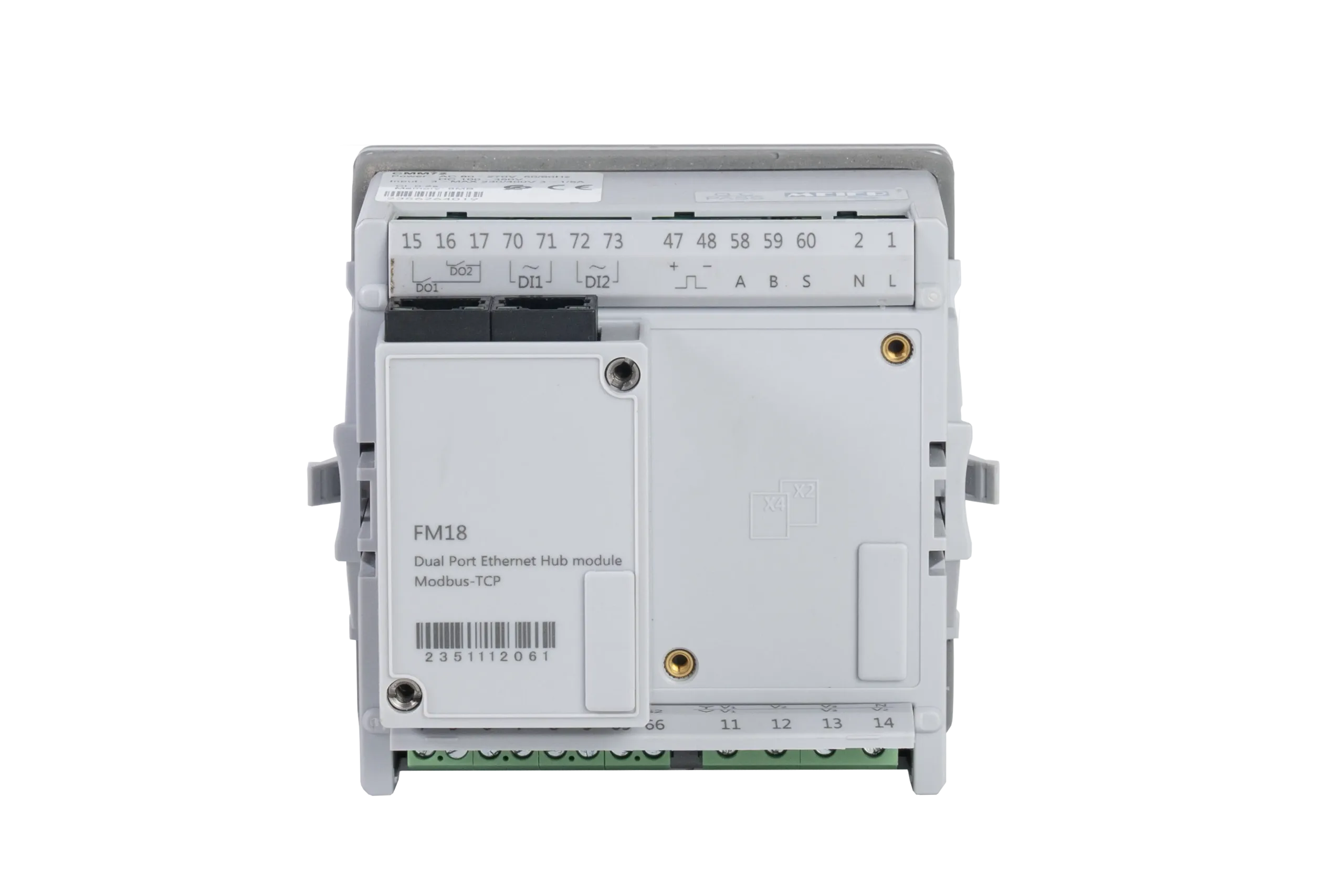

The instrument has two slots for inserting extension modules, which allow for expanding the instrument’s functionalities.

Thanks to its capacitive touch keys, it offers an IP64 front panel protection rating of the cabinet, allowing it to be installed in the most severe operating conditions (mining industries, food industries, etc.).

The instrument has two slots for inserting extension modules, which allow for expanding the instrument’s functionalities.

Applications

  • Data collection
  • Energy management

  • Power quality

  • Remote monitoring

Main features

Measurement:

  • V / A / P / Q / S / F / PF / DPF – RMS and fundamental

  • Maximum Indicator (Demand)
  • Value Max./Min.
  • Charging profile

Power quality:

  • Up to the 63rd harmonic
  • Sequential components
  • Unbalance
  • Peak factor and K factor
  • Phase diagram

Energy measurement:

  • Bi-directional energy
  • Reactive energy on 4 quadrants
  • Energy by tariff
  • Fundamental energy

Available Modules (optional):

  • GPRS
  • Wifi
  • M-Bus

  • RS-485 : Modbus-RTU

  • RS232
  • BACnet/IP
  • BACnet/MSTP
  • Profibus-DP

  • Ethernet: Modbus-TCP

  • Ethernet: Data logger with embedded Web server

  • 2 relay outputs
  • 2 analog outputs
  • 4 DC digital inputs
  • 2 AC digital inputs
  • 2 analog inputs (4-20mA)
  • 2 analog inputs (PT100)

Functions

Network

  • TN, TT, IT networks

Data collection
  • Maximeter recording (Demand)
  • Max./Min. values sheet.
  • Limit exceedance recording

  • SOE Recording

Optional modules

  • See comparison table

Optional modules

  • See comparison table

Communication

  • Modbus-RTU, Modbus-TCP, Profibus-DP, BACnet/IP, BACnet/MSTP

Accuracy

  • Active energy: 0.2S

  • Voltage: 0.1%

  • Current: 0.1%

Energy quality

  • Compliant with EN50160

  • THD

  • Harmonics up to the 63rd

  • Unbalance

  • Sequential components

  • Voltage dips

  • overvoltage

  • Interruptions

  • Flicker

  • Transients

  • Peak factor and K factor

  • Displaying waveforms

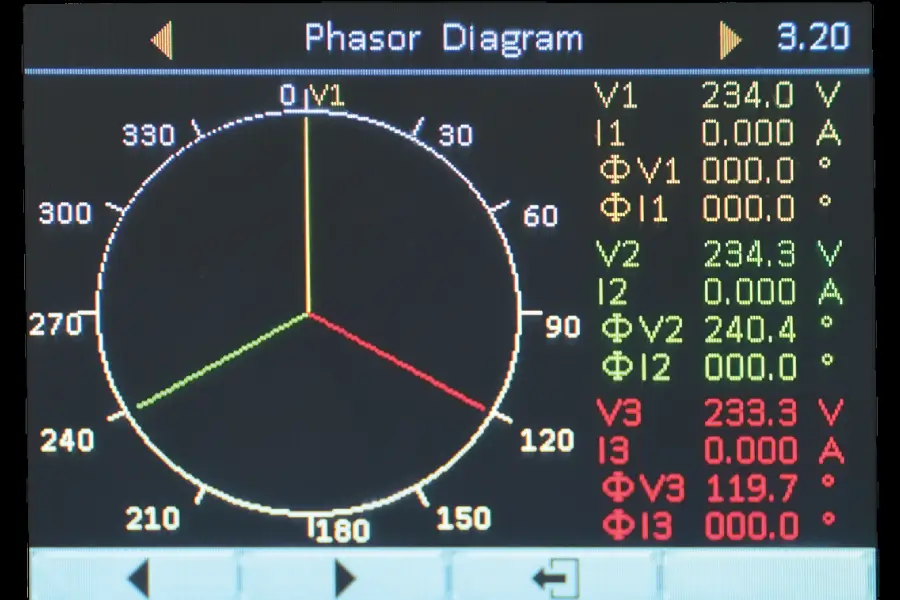

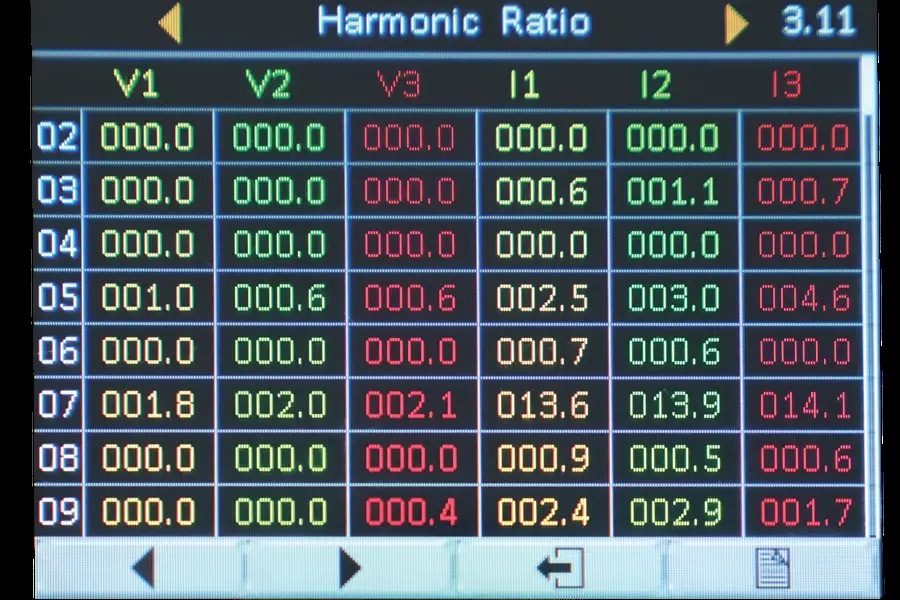

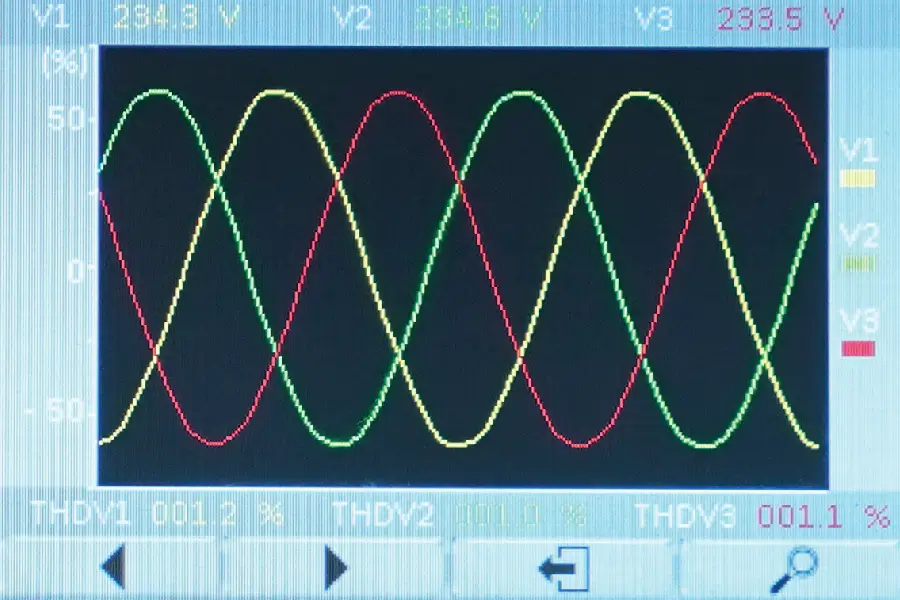

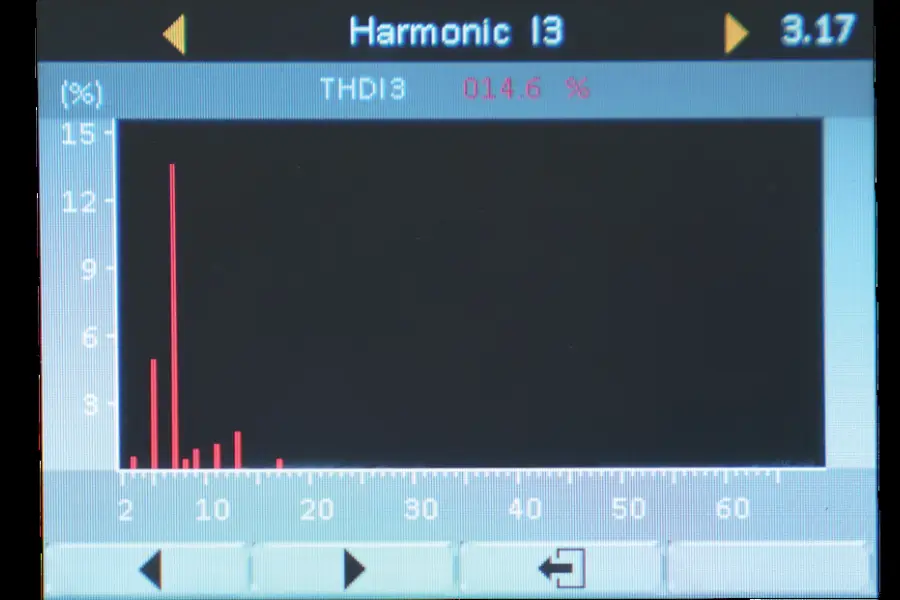

Screen Samples

Technical characteristics

Accuracy

  • V/A: 0.1%

  • P / Q / S / PF: 0.2%

  • F: +/- 0.01Hz

  • +/- kWh: Class 0.2S

  • +/- kVarh: Class 2

Input voltage

  • Nominal value: 3x230V / 400V

  • Overvoltage: Continuous : 1.2Vn. Instant: 2Vn/10s

  • Load: <= 0.1VA (per phase)

  • Impedance: >= 1.7MΩ

  • Frequency: 45Hz~65Hz

Voltage Input current

  • Nominal value: 1A ou 5A AC

  • Overload: Continuous: 1.2In. Instant: 10In/5s

  • Load: <= 0.1VA (per phase)

  • Impedance: < 20mΩ

Power supply

  • Voltage range: 80~270V AC/DC

  • Consumption: <= 10VA

Communication port

  • RS485, Modbus-RTU, 2 wires, up to 38.4kbps

Energy pulse output

  • 1 optocoupler output, pulse width (80+/-20%) ms

Digital input

  • 2 active entries 220V AC Isolation : 2000VAC

Relay output

  • 2 Relay outputs 5A/250V AC or 5A/30V DC. Isolation : 2500VAC

Environmental resistance
  • Operating temperature: -10°C~60°C

  • Storage temperature: -25°C~70°C

  • Relative humidity: 5-95% without condensation

  • Altitude: <=2500m

Dielectric strength

  • According to IEC61010-1

Degree of IP protection

  • Front IP64, Back IP20

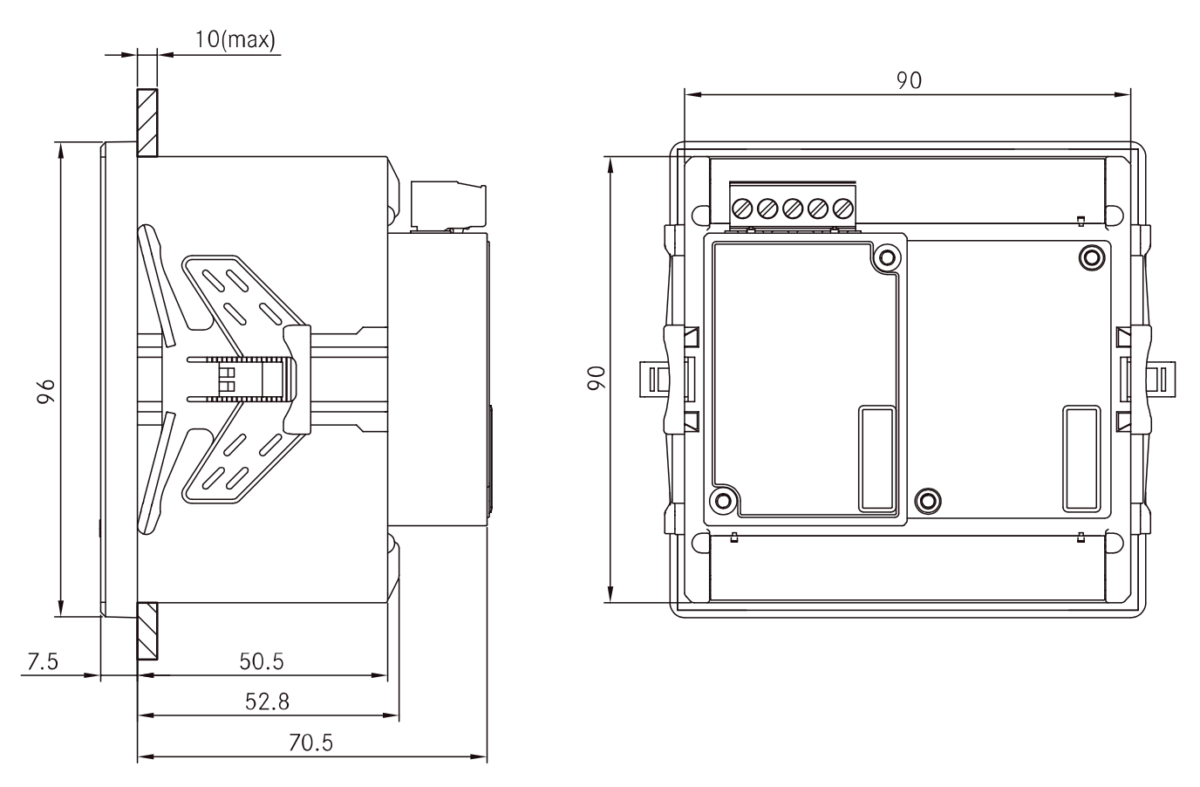

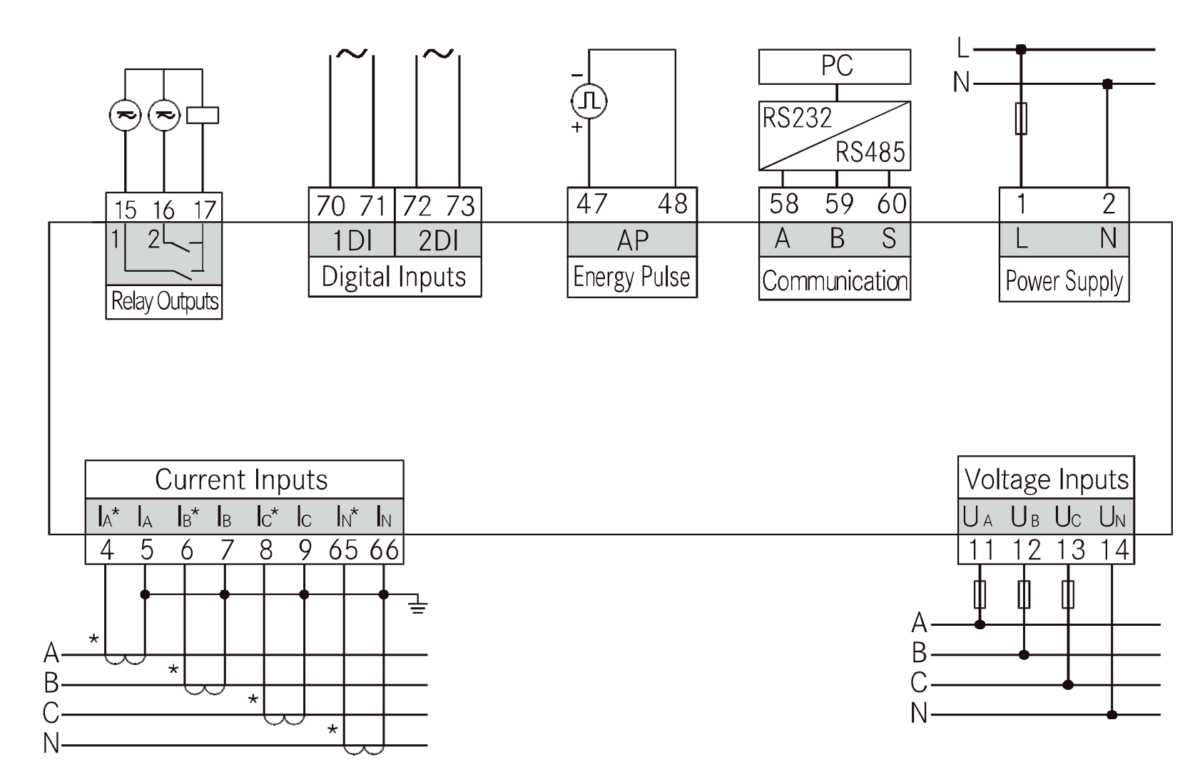

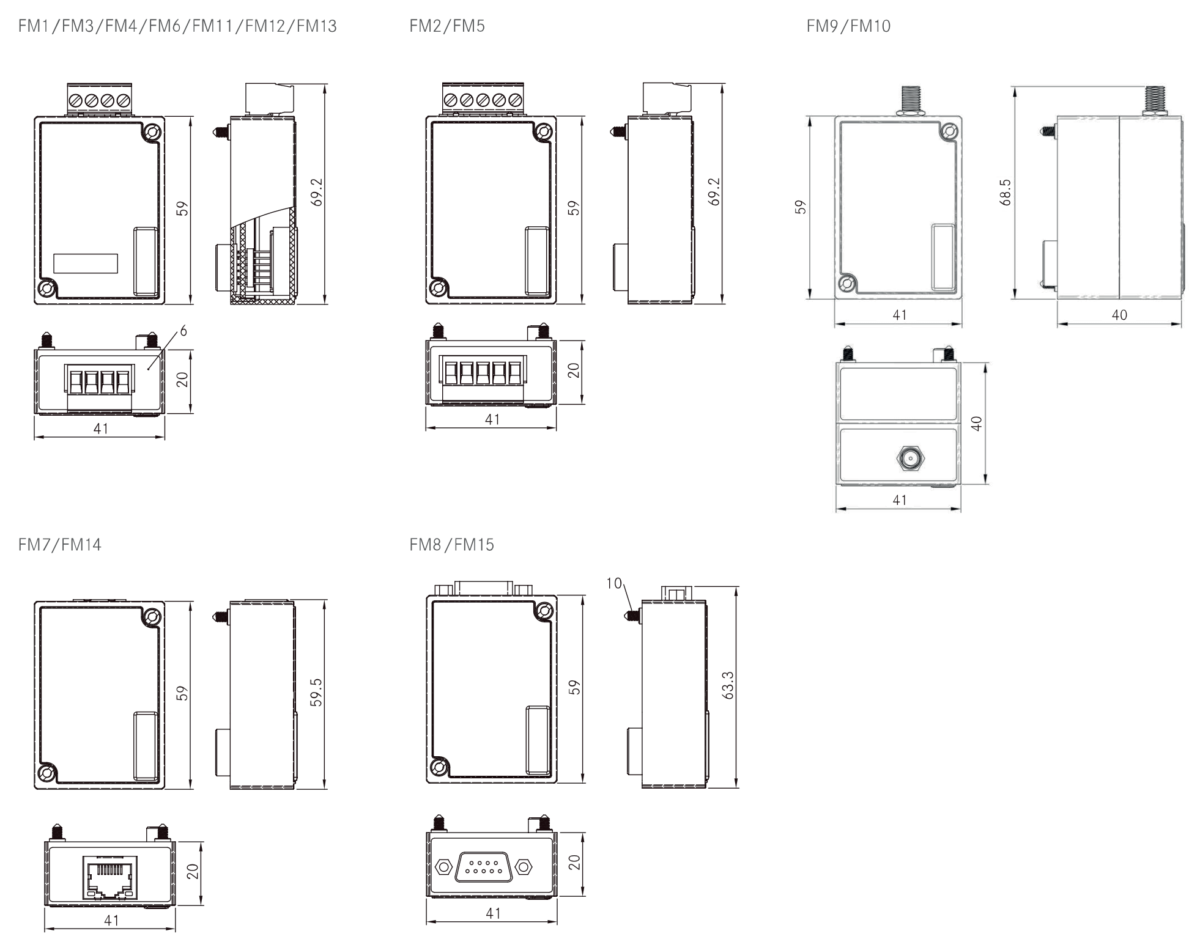

Installation and Connection
