Technical Specifications

CT Ratio

  • From 800A to 1250A

Nominal Power

  • Up to 15VA

Accuracy Class

  • Classes 0.1, 0.2s, 0.2, 0.5s or 0.5

Terminal

  • Full terminal coverage, high cross-section brass terminal for added safety.

Box

  • Flame-retardant ABS/PC. Self-extinguishing.

Mounting

  • On cable or bar

Operating ambient temperature

  • -25 C° – +85 C°

Primary conductor

  • 60 x 10 mm

Round conductor

  • Diameter 51 mm

Number of inputs

  • 1 input

Short-time thermal current

  • Ith = 60 kA

Continuous thermal current

  • Id=1 * In

Nominal frequency

  • 50Hz … 60Hz

Overvoltage current limiting factor

  • FS 5

Test voltage

  • 3kV 1min

System Max Voltage

  • 0.72kV

Applicable Standards

  • IEC 60044-1

  • IEC 61869-2

  • VDE 0414-1

  • DIN57414

  • BS3938

  • BS7626

  • EN 61869-2

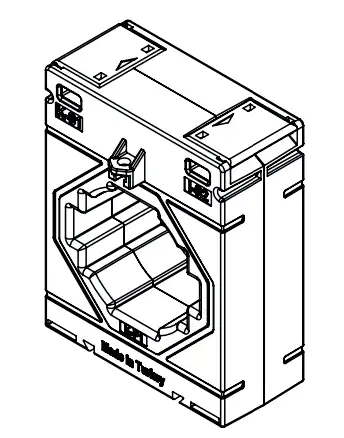

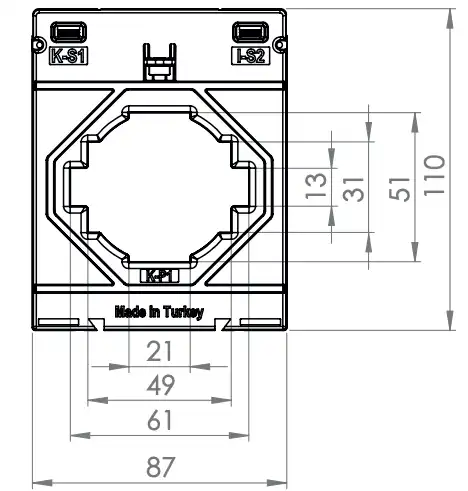

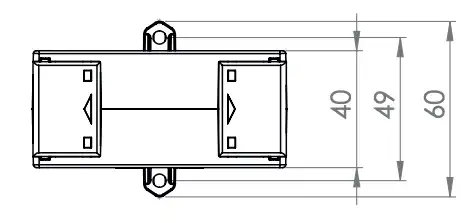

Diagrams and Dimensions

Reference Tables

RatiotSeriesReferenceAccuracy Class
1.0 0.5 0.5s 0.2 0.2s 0.1
800/5 CTMB60 CTMB60-800/5 10 10/15 10 10 5
1000/5 CTMB60-1000/5 15 15 15 15 10
1250/5 CTMB60-1250/5 15 15 15 15 15 15
